2x50W amp – bluetooth - custom luggage tag/bluetooth holder – 24V rechargeable battery – charger – stereo L/R separated sound chambers – handmade split port design – USB charging port – digital voltmeter – isolated Subwoofer chamber
http://www.casestudyacoustics.com
Do not mistake this with other BoomBoxes. The Case Studies projects L/R stereo sound without the use of HIGH POWERED amplifiers that quickly cut battery life.
Small in size yet big on features - the Case Study Acoustics – AR001 is as flexible as it is functional. A five and a quarter inch uni-cone woofer, coupled with a one inch silk dome tweeter, delivers sound with extremely low distortion and clean, clear highs. The audio amplifier utilizes a state-of-the-art, dual channel Class-D TDA7492 IC, which delivers up to 50 watts per channel.
Driver Details Right/Left channel speaker:
-Tweeter driver - 1.0 in silk dome
-Woofer driver - 5.25 in
-Speaker Type 2-way - Passive
-Response Bandwidth 55 - 20000 Hz
-Input Impedance 8.0 Ohm
-Sensitivity 88.0 dB
Subwoofer:
-Isolated, ported Subwoofer sound chamber
-8in duel voice coil
-Input Impedance 8.0 Ohm
-100Hz low-pass filter

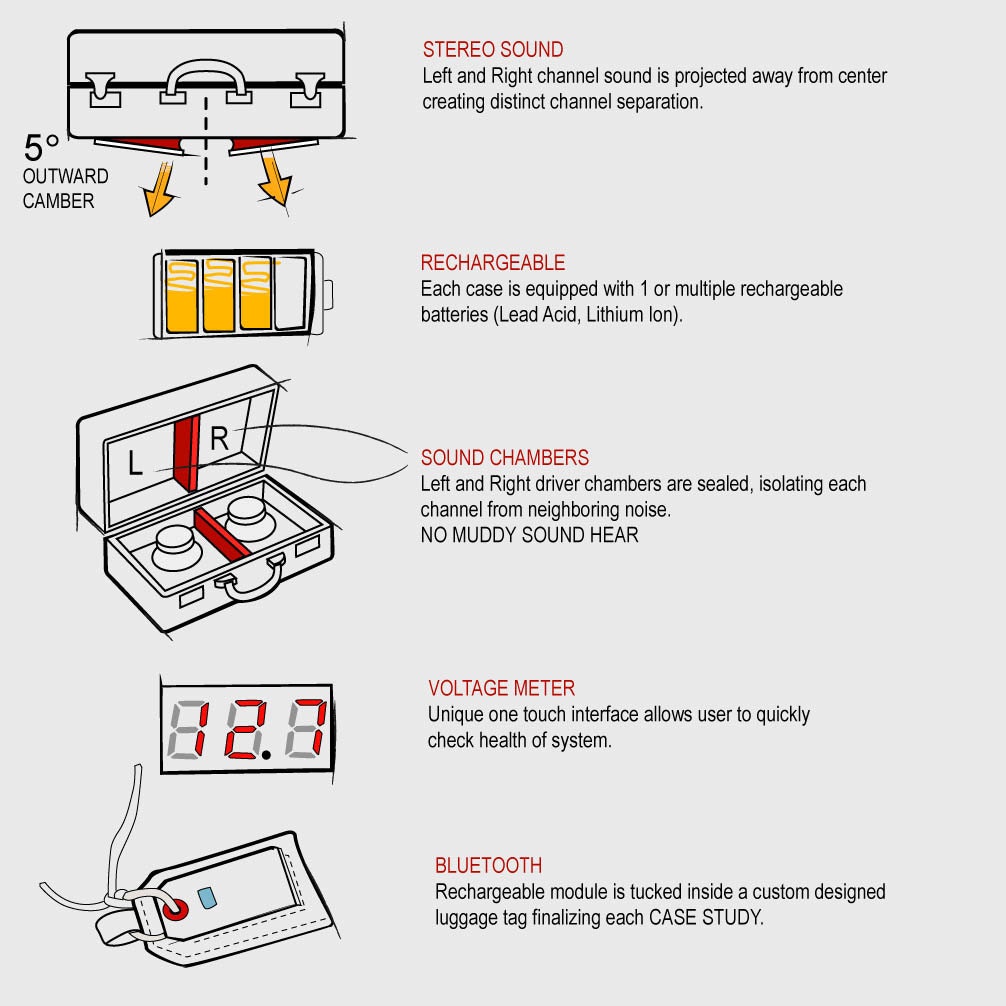

Features:
Custom “Split Port” original design
Case size (Volume) and port size specifically matched to driver specifications for optimum performance. Subwoofer housed in custom sound chamber.
Bluetooth Receiver
-Simple - Receive Bluetooth wireless music signal from your Smartphone, iPod, PC, MacBook or laptop.
-Works with any phone or device capable of transmitting the Bluetooth stereo (A2DP) protocol.
-Built-in sleep mode conserves the battery when the device is not in use.
-Operating time - Up to 8 hours playback using internal Lithium-Ion battery or continuous with USB.
-Range - Line of sight 20-25ft
Handmade Luggage Tag
– Receiver neatly fits in handmade luggage tag that is designed to specifically to hide device yet allow USB charging port to still be used. Tag includes airport overlay that is individually customized to each sellers regional airport letters (for example: Orange County California would have SNA airport code)
ON/OFF: Flip a chrome toggle switch to turn case ON
Rechargeable Battery Comes with 24V rechargeable battery along with charger
Battery Life: 8+ Hours (24V - 5Ah)
Weight: 27 lbs
Dimensions 21.5in (Length) x 15in (Height) x 6.5in (Depth)
USB Port:
This feature chargers any device that can charge from a computer USB port.(iPod, iPhone, Droid, Mp3 Players etc.)
Slim Digital Voltmeter:
Case has a digital meter the quickly displays battery voltage by the push of a momentary button. This is important because regularly allowing the battery to discharge below specs will lower battery life.
As I said before, shoot me an email with any questions that you might have.
Thanks - Hand Built by Ryan Redenbaugh
Shipping:
I can ship anywhere in the world. Just supply us with your country and we can give you shipping cost.
