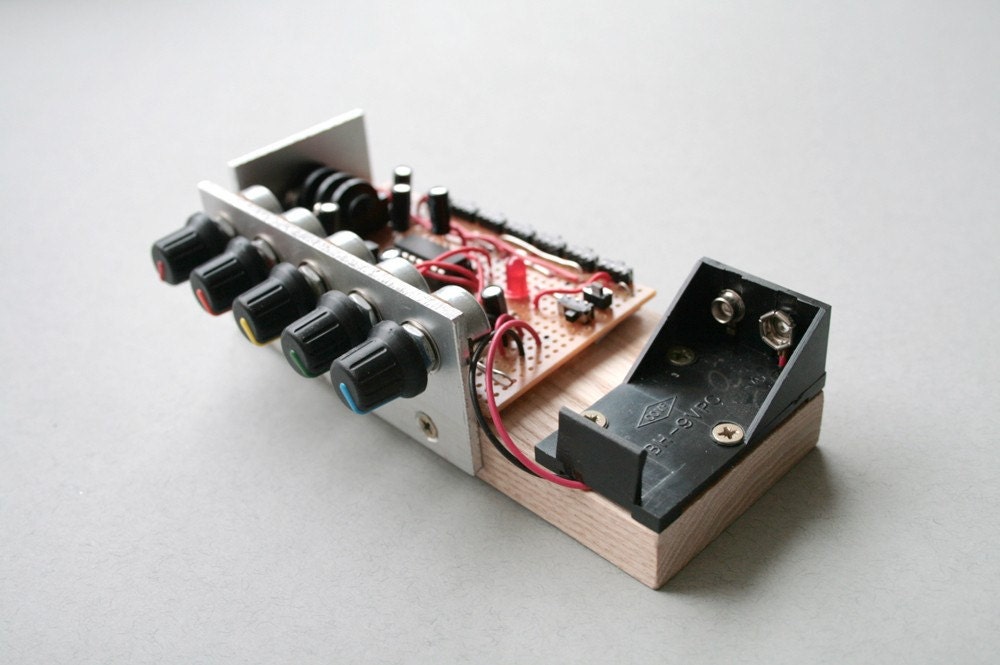

Noise hero is a little 4093 based electronic noise maker. Its great for making sound effects and silly noises.

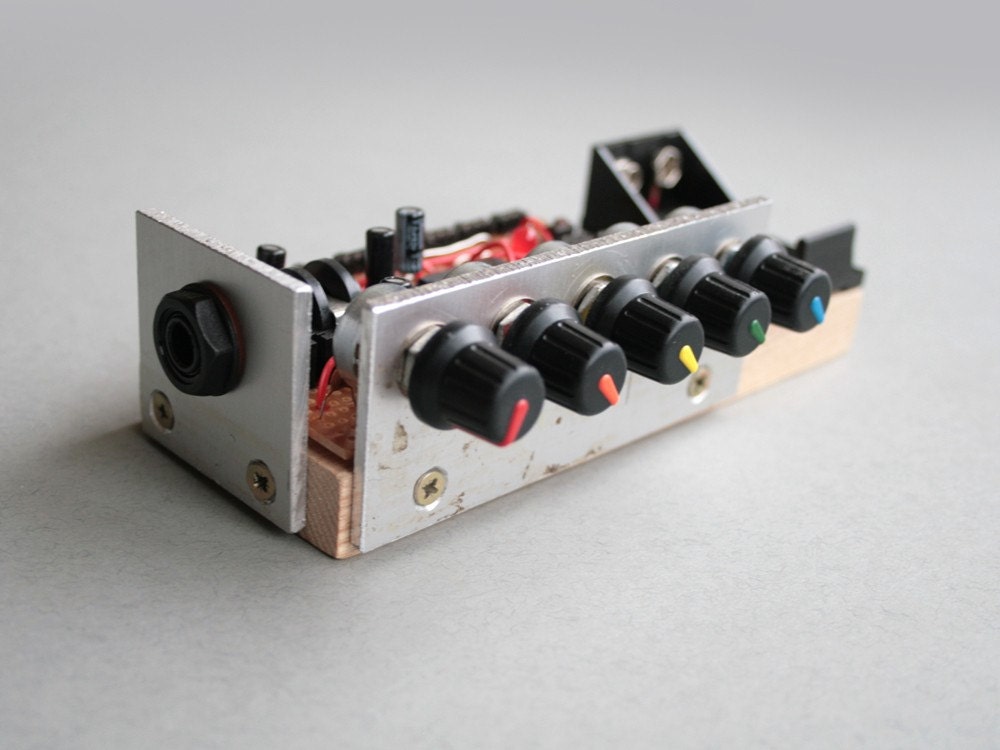

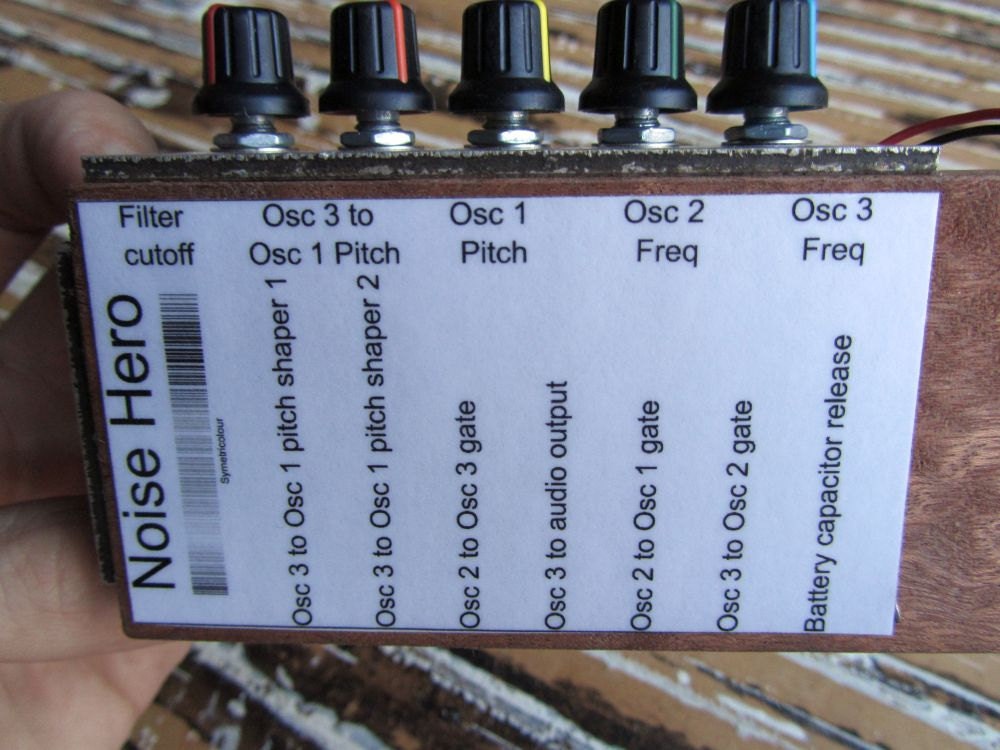

It is controlled by 5 knobs, 8 switches and one push button.

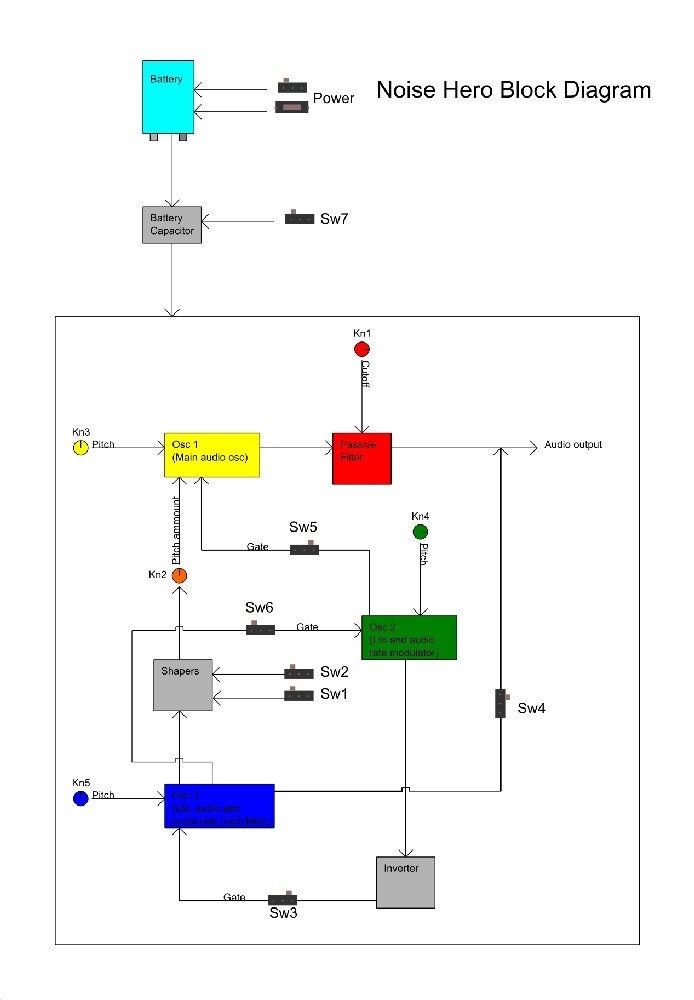

It has 3 oscillators (Yellow, Green and Blue knobs). Osc 1 produces audio frequency ranges whilst osc 2 and 3 produce LFO and audio frequencies.
Osc 1 goes to the output through a simple passive filter (Red knob) while osc 3 can be switched to the output but bypasses the filter.
Osc 3 modulates osc 1's pitch by the amount set by the orange knob. This modulation can be shaped by 2 shapers which can be switched on and off. Osc 3 can also gate osc 2.
Osc 2 can gate osc 1 and passes through an inverter after which it can gate osc 3.
There is also a push button to trigger the unit (actually a power button), a switch to lock the power on, a power led indicator and a battery cap switch which lets the unit run for a short time after power off for springy type noises.
A certain configuration can even produce sounds that stop after a time determined by osc 3 which is good for maker sound effects.
The knobs all go backward. This is because I'm using logarithmic knobs which make the oscillators easier to control when wired up the wrong way round.
The Noise Hero is powered by a single 9v battery (not supplied). It requires external amplification via an amp or soundcard to be heard.
Its mounted on a reclaimed hardwood and aluminium base. The type of hardwood may vary and there may be surface marks to the aluminium. It is also supplied with an instruction CDR.
Its dimensions are: 14cm x 8cm x 4.5cm or 5.5" x 3.25" x 1.75"
This item now comes with a free set of build instructions on the CDR!
