🔥 Premium Linear Slot Diffuser – Custom Size & Finish | Modern HVAC Vent Grille

Custom Length Information

The length options in this listing are shown in 0.5 meter increments (1 m, 1.5 m, 2 m, 2.5 m, 3 m, etc.) for pricing purposes only.

Each diffuser is fully custom-made for your order.
You can request any exact length you need — with millimeter precision.

When placing your order, simply enter your required exact length in the Personalization field, and we will manufacture the diffuser according to your specifications.

Every piece is custom-produced to ensure a perfect fit for your project.

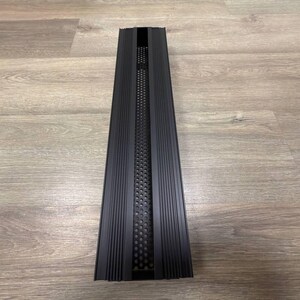

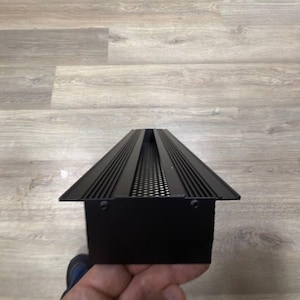

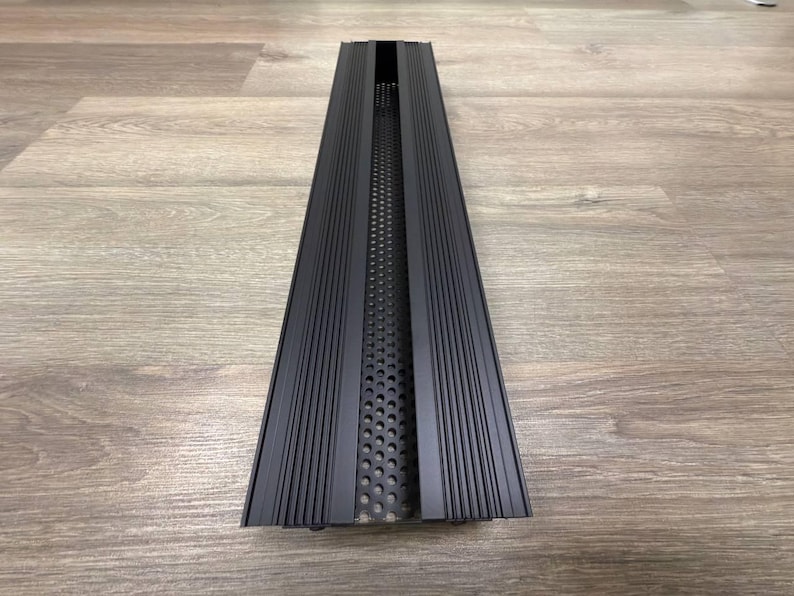

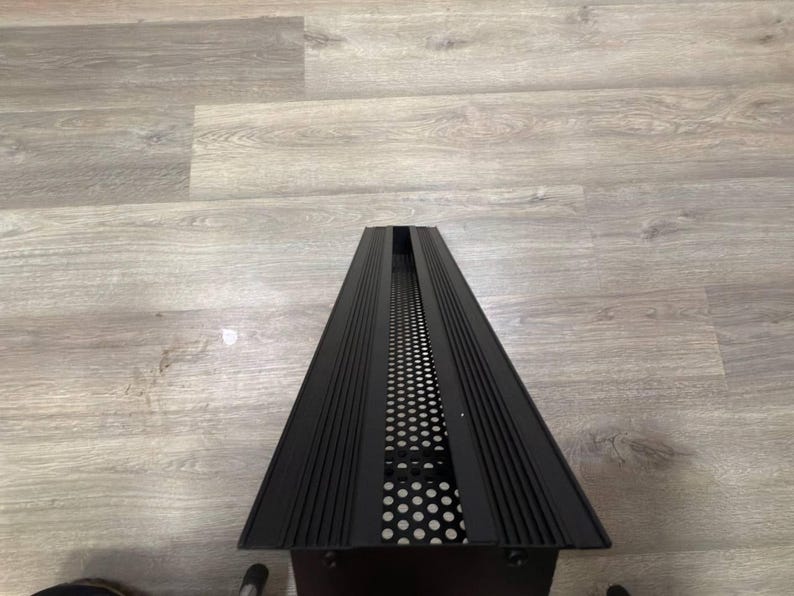

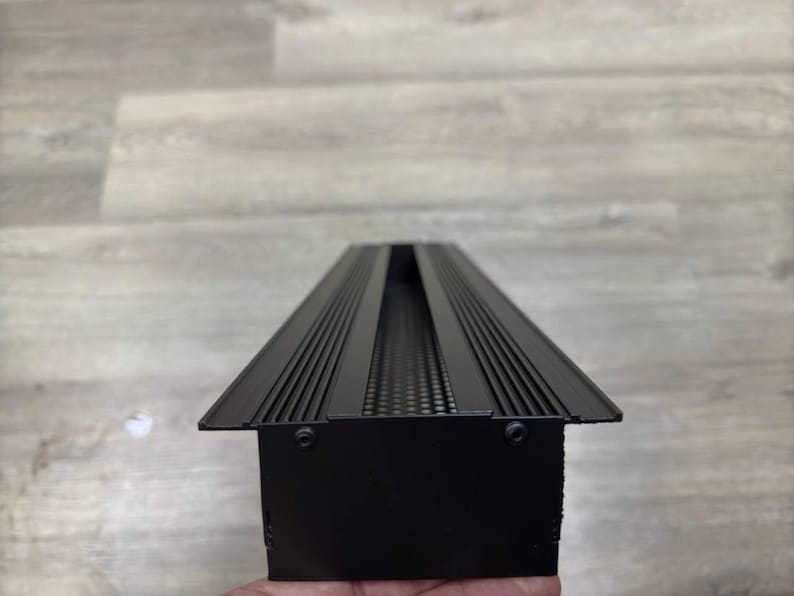

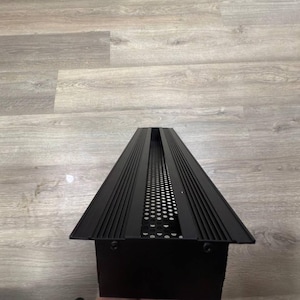

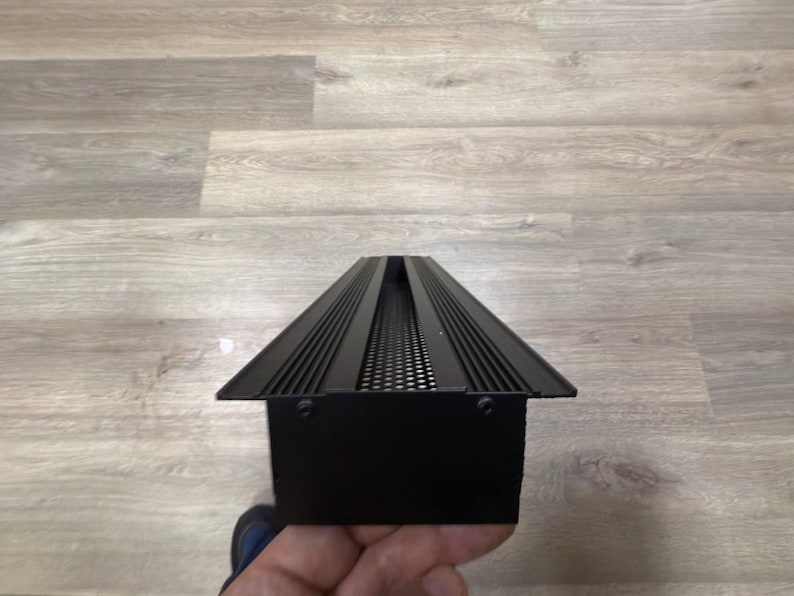

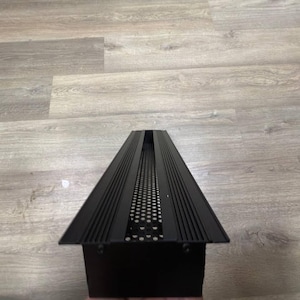

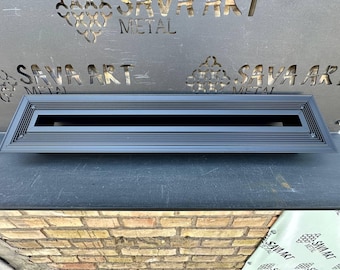

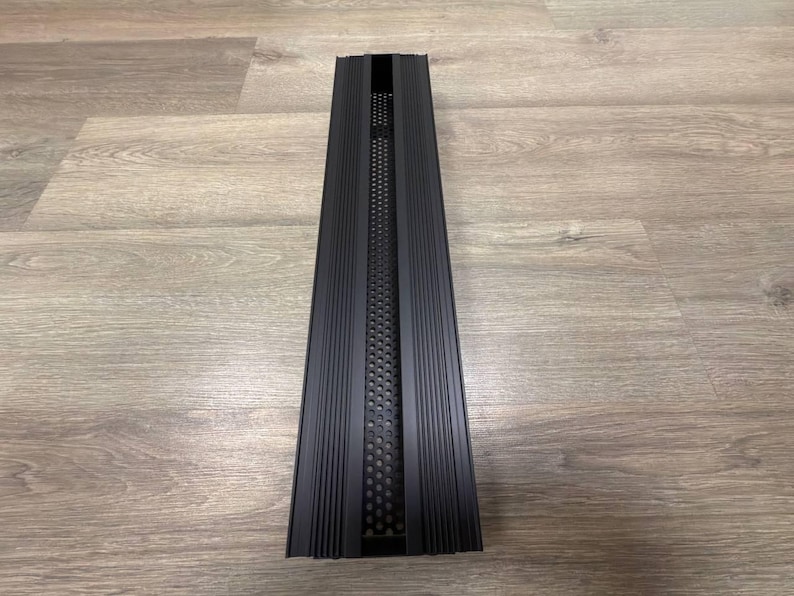

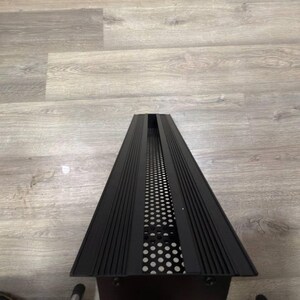

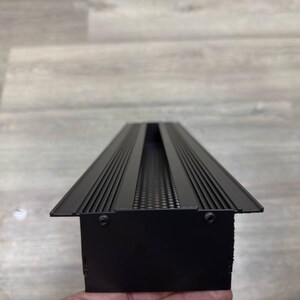

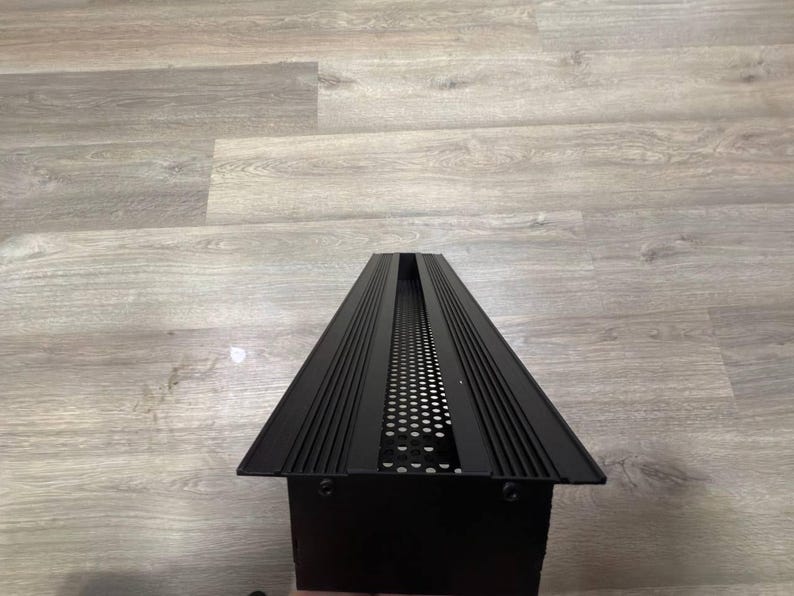

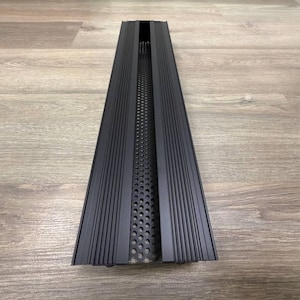

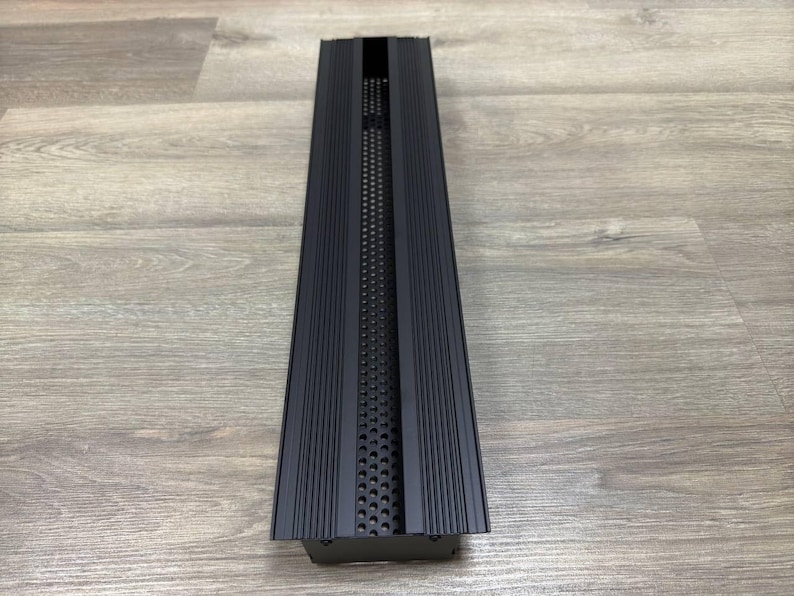

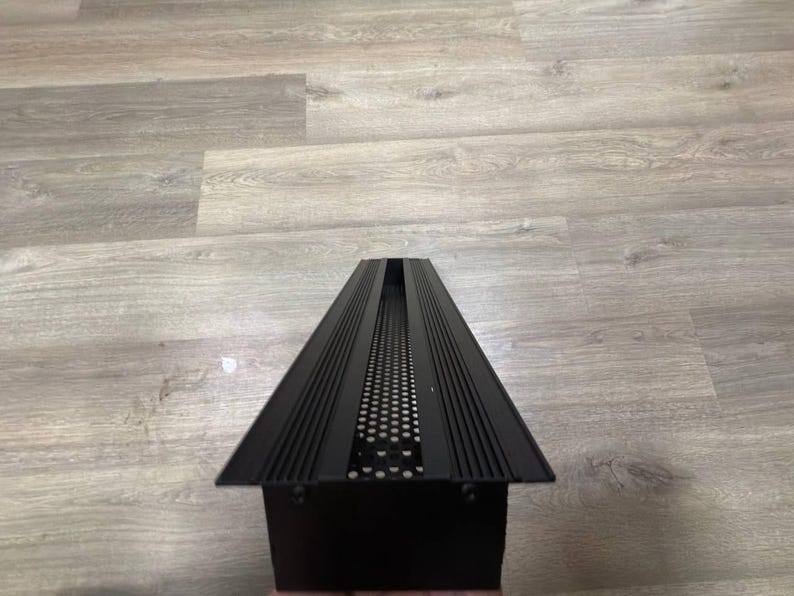

Upgrade your space with our architectural linear air diffuser, built for seamless ceiling or wall installation.

✅ 3 airflow slot sizes – 22mm / 33mm / 44mm, each with a directional flow adjuster
✅ Custom lengths from 10” to 236” (250–6000 mm), precision-made to the millimeter
✅ Modular design – create an infinite line or wrap the room perimeter
✅ 1–4 slot configurations for your airflow needs
✅ End caps & corner elements for a clean, professional finish
✅ Standard finishes in matte black or white – or choose any RAL color
✅ Made-to-order to match your HVAC specs and interior design

🔧 Installation Instructions – Custom Linear Slot Air Diffuser with Hidden Mount

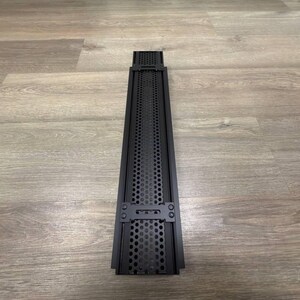

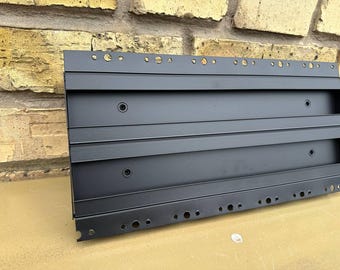

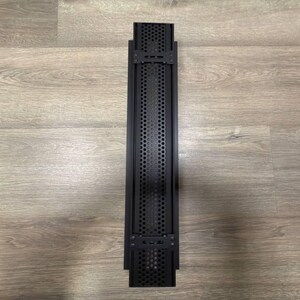

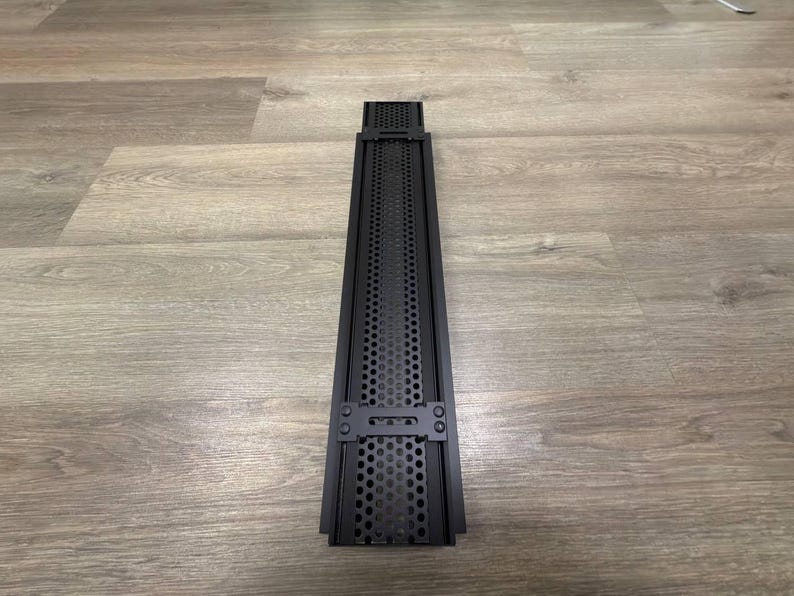

This modern linear air diffuser is designed for seamless integration into drywall ceilings. It features a hidden perforation mounting system, making it perfect for clean, minimalist interiors.

🛠 Step-by-Step Installation:
1. Mark the ceiling layout according to the custom grille dimensions.
2. Assemble the ventilation adapter and temporarily fix it in place.
3. Secure the adapter using Knauf steel profiles for a rigid, long-lasting frame.
4. Install the drywall ceiling over the ventilation structure.
5. Attach the perforated grille directly to the drywall using metal screws every 10–15 cm around the perimeter.
6. Prime the surface and grille joints with a roller.
7. Apply the base coat of joint compound.
8. Reinforce all seams using Knauf tape for flawless finishing.
9. Apply the final skim coat of compound.
10. Sand and re-prime the surface to prepare for final painting or decorative coating.

⸻

✅ Professional Recommendations for HVAC Efficiency:
• The adapter must cover the entire length of the custom grille.
• For balanced airflow, include at least one duct connection per 1000 mm (39”) of grille length.
• Ensure a 1000 mm (39”) gap between supply and exhaust connections for optimal air circulation.
• The installation height of the adapter should be at least 150 mm (6”) above the diffuser.


Text me to get a quote!
