Modular Stackable Crate Bundle | Storage Boxes Laser Cutting Files | SVG DXF PDF | 16 Sizes | Workshop Organization System

Designed by TeuniqueDesign
• Supplies for making crafts
• Digital download
• Digital file type(s): 1 ZIP

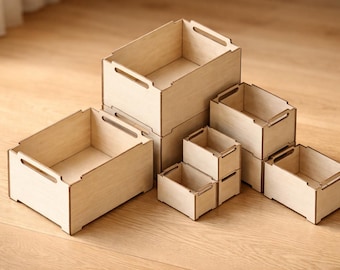

Modular Stackable Crate Bundle – Laser Cutting Files

A complete modular stackable crate system.

This digital bundle allows you to create custom storage crates that stack, nest, and combine seamlessly across multiple sizes.

Perfect for:

Workshop and garage organization
Modular shelving and storage systems
Furniture and interior projects
Makerspaces and DIY builds

This is a design system, not just loose box files.

📦 What's included

✔ 16 unique crate sizes
✔ Square and rectangular footprints
✔ Low and high height variants per footprint
✔ Modular combinations (crates fitting into larger crates)
✔ Instruction PDF included, containing:

Full crate size overview
Modular combination examples
Crate codes per set
Clear visual references

✔ 1 ZIP File included containing the following files:

SVG
DXF
PDF
AI (Adobe Illustrator)

📏 Crate sizes (outer dimensions)

All dimensions shown are outer dimensions
Format: Width × Depth × Height

Square crates

150 × 150 × 100 mm — 5.91 × 5.91 × 3.94 in

150 × 150 × 150 mm — 5.91 × 5.91 × 5.91 in

175 × 175 × 150 mm — 6.89 × 6.89 × 5.91 in

175 × 175 × 200 mm — 6.89 × 6.89 × 7.87 in

325 × 325 × 216 mm — 12.80 × 12.80 × 8.50 in

325 × 325 × 316 mm — 12.80 × 12.80 × 12.44 in

400 × 400 × 300 mm — 15.75 × 15.75 × 11.81 in

400 × 400 × 400 mm — 15.75 × 15.75 × 15.75 in

Rectangular crates

150 × 300 × 100 mm — 5.91 × 11.81 × 3.94 in

150 × 300 × 200 mm — 5.91 × 11.81 × 7.87 in

175 × 315 × 128 mm — 6.89 × 12.40 × 5.04 in

175 × 315 × 178 mm — 6.89 × 12.40 × 7.01 in

185 × 375 × 142 mm — 7.28 × 14.76 × 5.59 in

185 × 375 × 242 mm — 7.28 × 14.76 × 9.53 in

200 × 365 × 178 mm — 7.87 × 14.37 × 7.01 in

200 × 365 × 228 mm — 7.87 × 14.37 × 8.98 in

🪵Material thickness compatibility

Each crate size is available in optimized versions for the following material thicknesses:

3 mm
4 mm
5 mm
6 mm
1/8 inch
1/4 inch

Files are prepared per thickness to ensure a proper fit.

🔧 Technical notes

This is a digital download, no physical product is shipped
You need access to a laser cutter
Basic laser cutting knowledge is recommended
Suitable for plywood, MDF and similar sheet materials
Clean joints and consistent fit across all sizes

💡 Use & license

Personal and small business use allowed
Selling physical items made from these files is permitted
Redistribution or resale of the digital files is not allowed

💬 Questions or custom requests?

If you have questions, need help choosing a size, or want to expand this system, feel free to send a message.

Why this bundle?

Because it's not just boxes, it's a modular storage system you can grow, adapt and reuse across projects.
