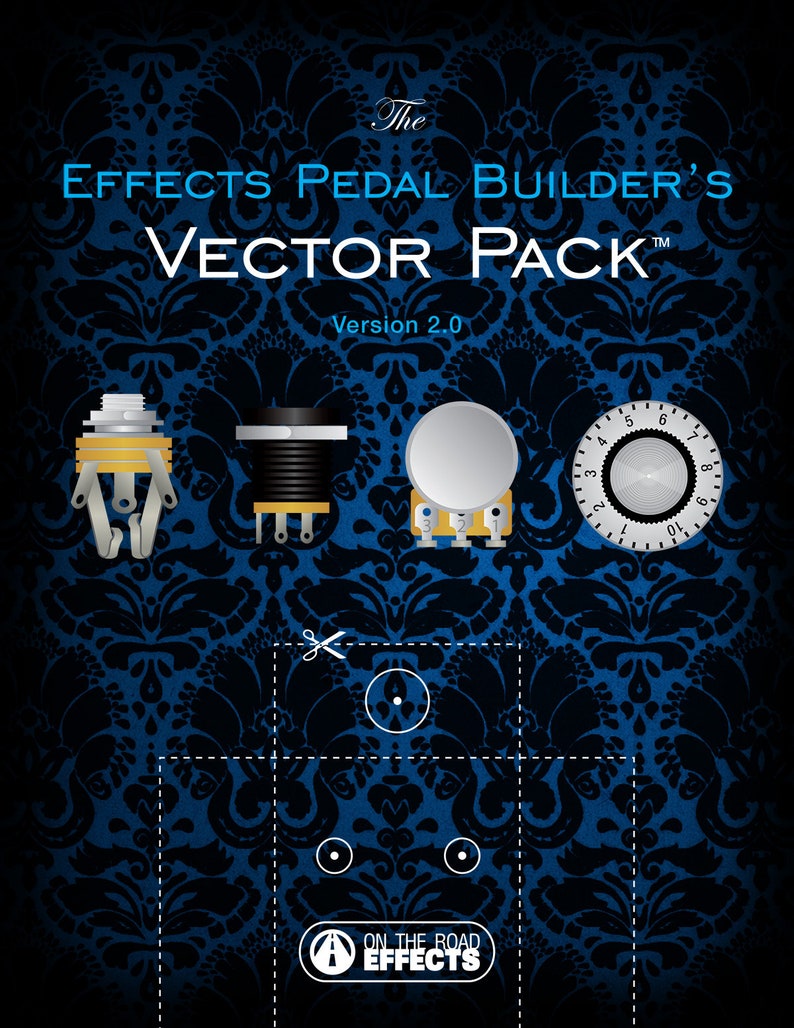

Pedal Builder's Vector Pack v.2.0

INTRODUCTION:

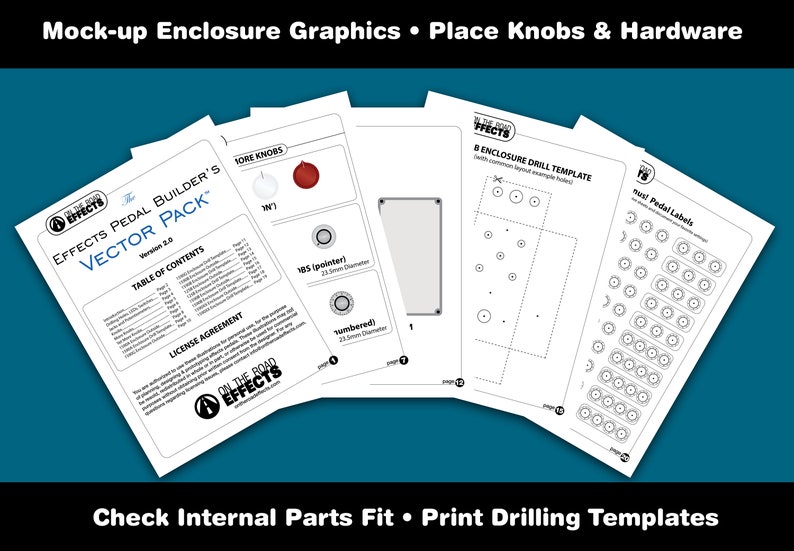

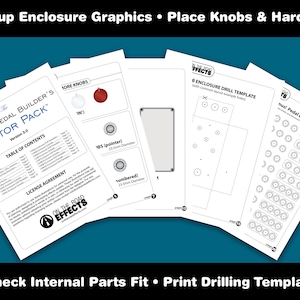

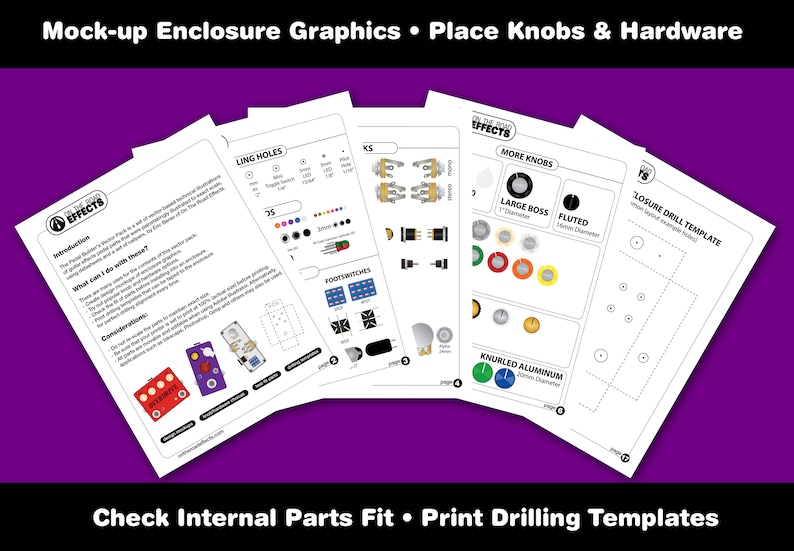

The Pedal Builder's Vector Pack is a set of vector-based technical illustrations of guitar effects pedal parts that were painstakingly illustrated to EXACT SCALE, using datasheets and a set of calipers, by Eric Barao of On The Road Effects.

USES FOR THE VECTOR PACK:

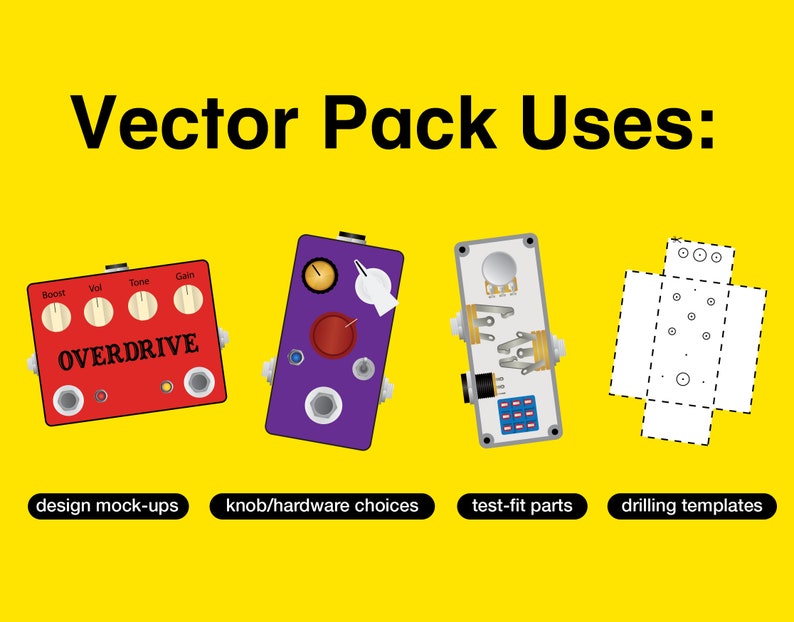

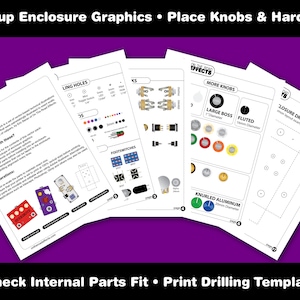

There are many uses for the contents of this vector pack for the DIY guitar effects pedal builder:
- Create design mock-ups of effects pedal enclosure graphics and prepare for digital printing.
- Try out popular knob and hardware options.
- Check the fit of parts before installing into an enclosure.
- Print drilling templates that can be taped to the enclosure for perfect drilling alignment every time.

CONSIDERATIONS:
- Do not re-scale the parts to maintain exact size.
- Be sure that your printer is set to print at 100% (actual size) before printing.
- All parts are movable and editable when using Adobe Illustrator. Alternatively, applications such as Inkscape, Photoshop, Gimp and others may also be used.

FILE TYPES INCLUDED:
- Adobe Illustrator .AI
- Adobe PDF
