Description
Bracket kits for building a DIY Eurorack case using Vector T-Strut rails. The kits includes all the hardware necessary to connect the side bracket to the rails and case. Kits are available for the following configurations:

1U – $15

3U – $20

1U+3U – $25

1U+3U+1U – $30

1U+3U+3U – $40

3U+1U+3U – $40

__________________________________________________________

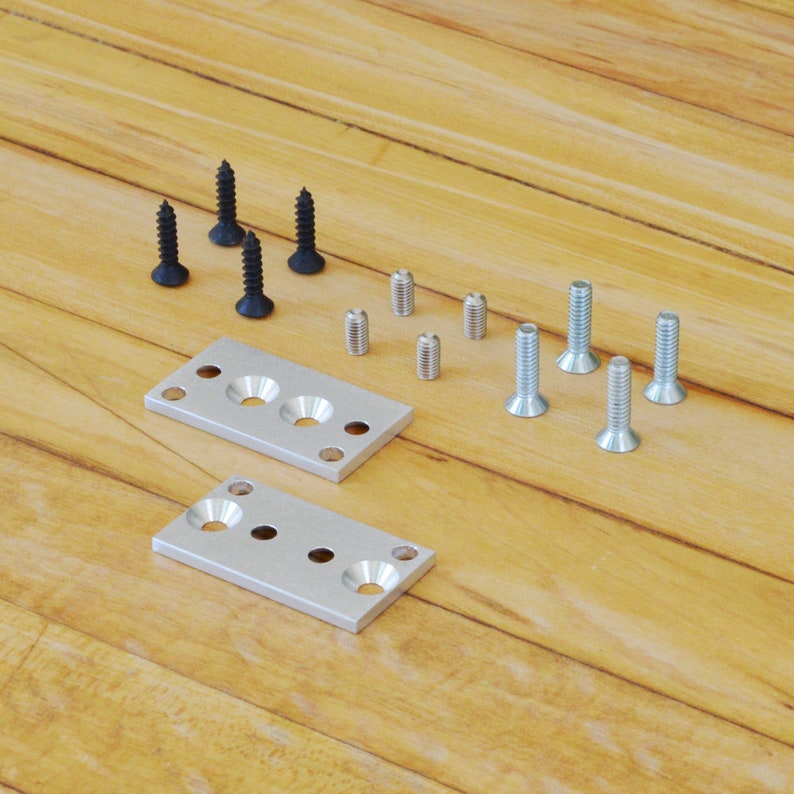

1U Bracket Kit:

2 – Aluminum 1U Brackets (1.75″ x 1.00″ x 0.125″)
4 – #10-32 x 3/16″ Socket Set Screw
4 – #10-24 x 3/4″ Phillips Flat Head Screw
4 – #8 x 3/4″ Phillips Oval Head Wood Screw

__________________________________________________________

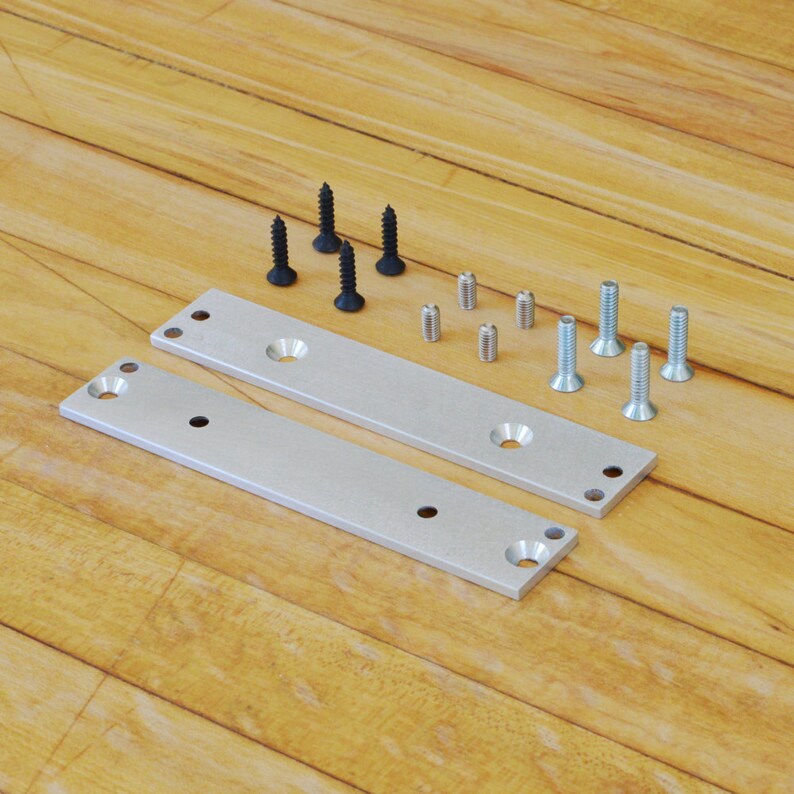

3U Bracket Kit:

2 – Aluminum 3U Brackets (5.175″ x 1.00″ x 0.125″)
4 – #10-32 x 3/16″ Socket Set Screw
4 – #10-24 x 3/4″ Phillips Flat Head Screw
4 – #8 x 3/4″ Phillips Oval Head Wood Screw

__________________________________________________________
1U+3U Bracket Kit:

2 – Aluminum 1U+3U Brackets (6.96″ x 1.00″ x 0.125″)
8 – #10-32 x 3/16″ Socket Set Screw
8 – #10-24 x 3/4″ Phillips Flat Head Screw
4 – #8 x 3/4″ Phillips Oval Head Wood Screw

__________________________________________________________

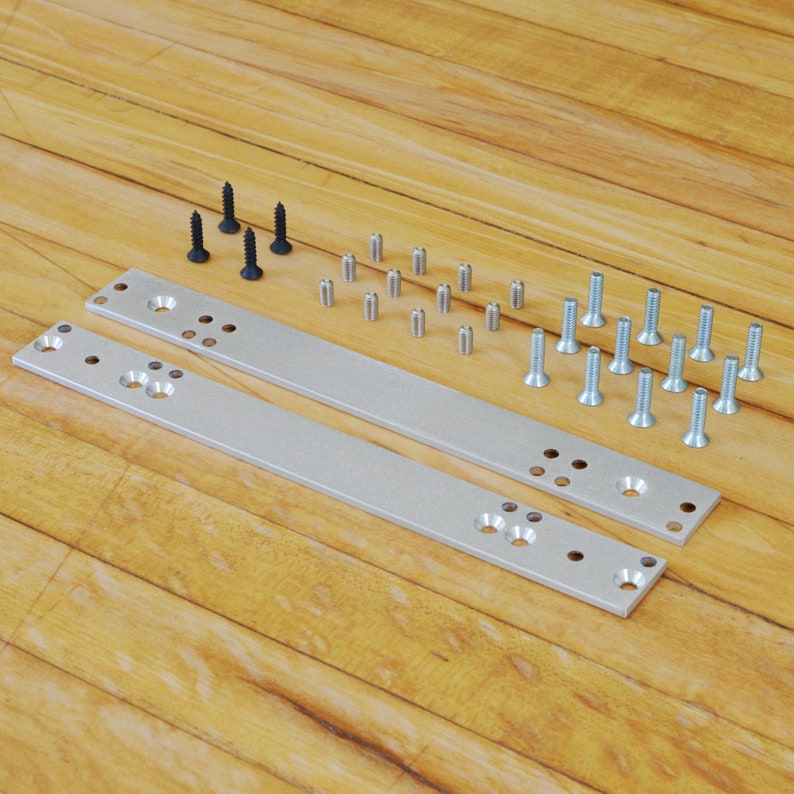

1U+3U+1U Bracket Kit:

2 – Aluminum 1U+3U+1U Brackets (8.70″ x 1.00″ x 0.125″)
12 – #10-32 x 3/16″ Socket Set Screw
12 – #10-24 x 3/4″ Phillips Flat Head Screw
4 – #8 x 3/4″ Phillips Oval Head Wood Screw

__________________________________________________________

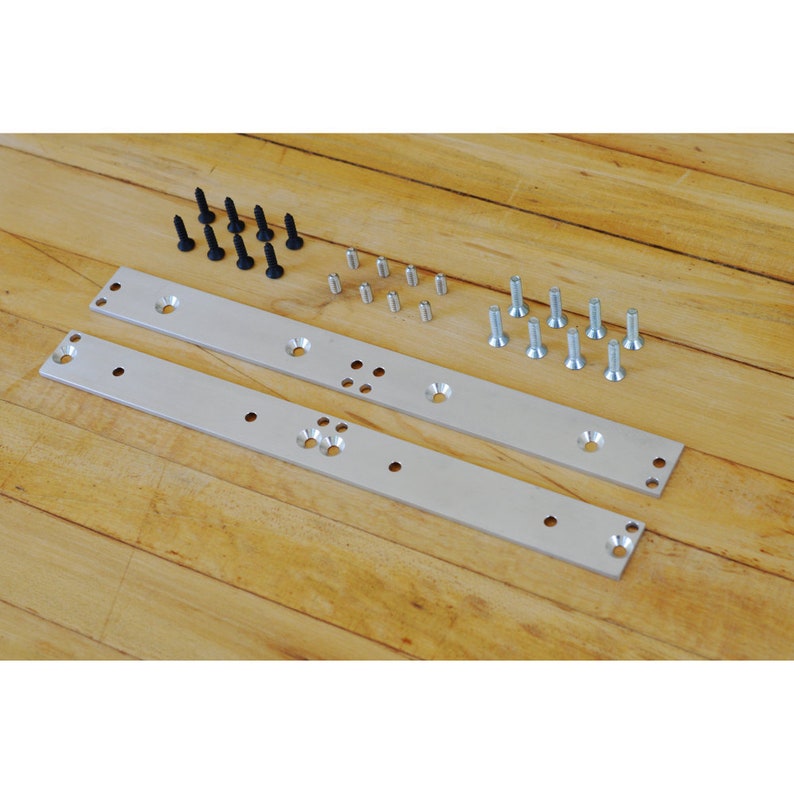

3U+3U Bracket Kit:

2 – Aluminum 3U+3U Brackets (10.30″ x 1.00″ x 0.125″)
8 – #10-32 x 3/16″ Socket Set Screw
8 – #10-24 x 3/4″ Phillips Flat Head Screw
8 – #8 x 3/4″ Phillips Oval Head Wood Screw

__________________________________________________________
1U+3U+3U Bracket Kit:

2 – Aluminum 1U+3U+3U Brackets (12.125″ x 1.00″ x 0.125″)
12 – #10-32 x 3/16″ Socket Set Screw
12 – #10-24 x 3/4″ Phillips Flat Head Screw
8 – #8 x 3/4″ Phillips Oval Head Wood Screw

__________________________________________________________

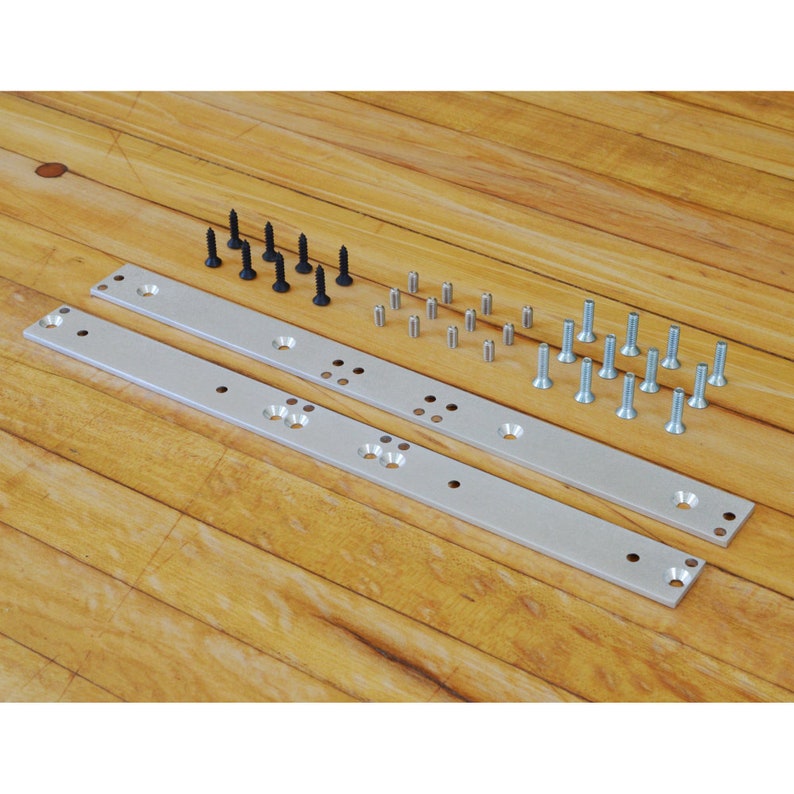

3U+1U+3U Bracket Kit:

2 – Aluminum 3U+1U+3U Brackets (12.125″ x 1.00″ x 0.125″)
12 – #10-32 x 3/16″ Socket Set Screw
12 – #10-24 x 3/4″ Phillips Flat Head Screw
8 – #8 x 3/4″ Phillips Oval Head Wood Screw


All brackets are 0.125″ thick (3.175mm), be sure to include 2x bracket thickness when determining the width of your case.

Example:

104HP = 20.8″ (528.3mm)

Inside Case Width = 20.8″ + 0.25″ = 21.05″ (534.7mm)
