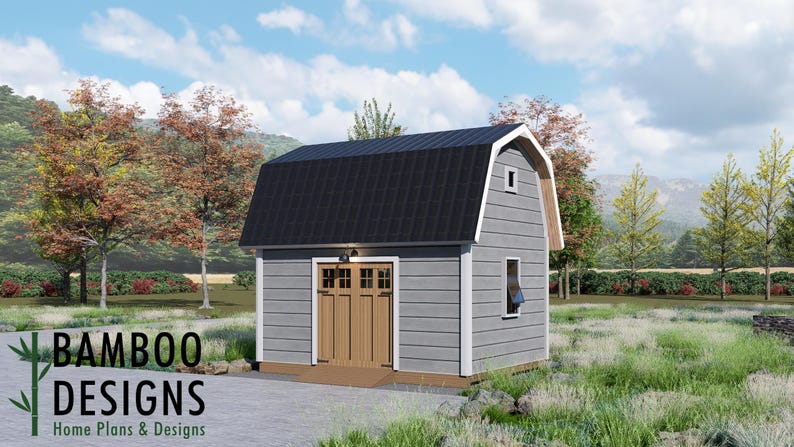

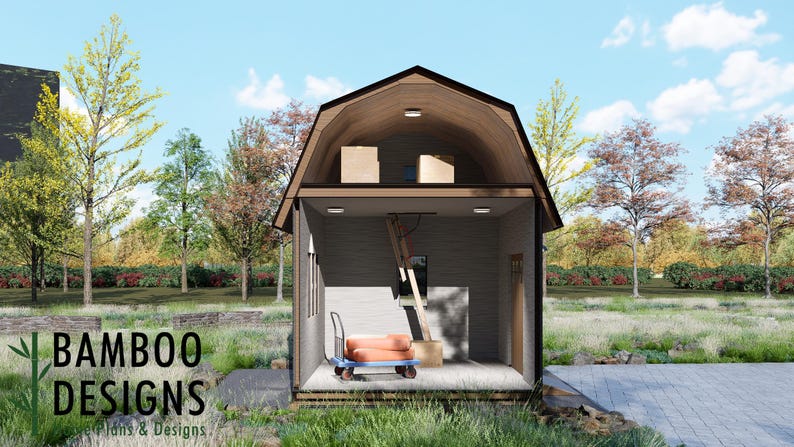

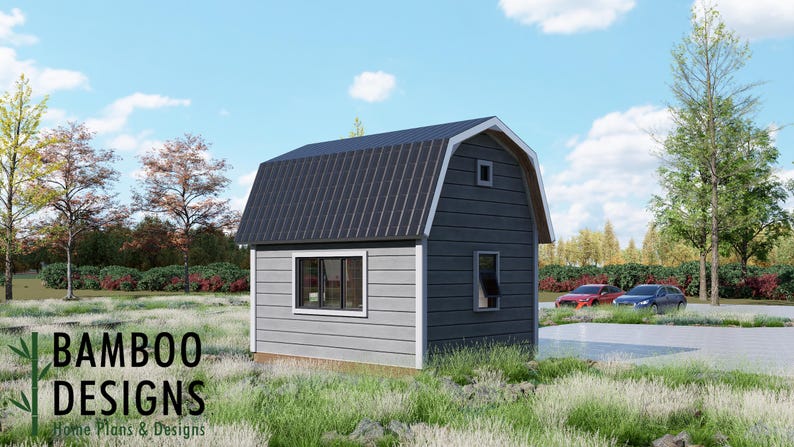

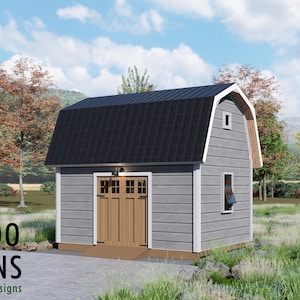

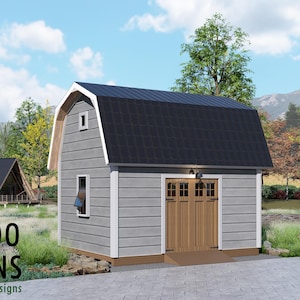

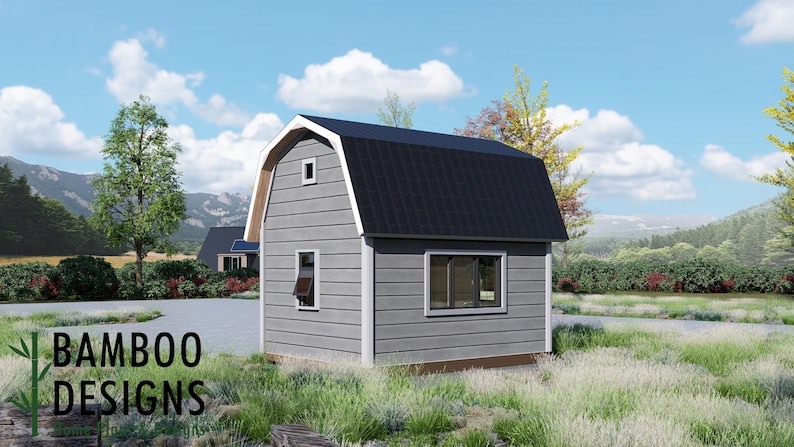

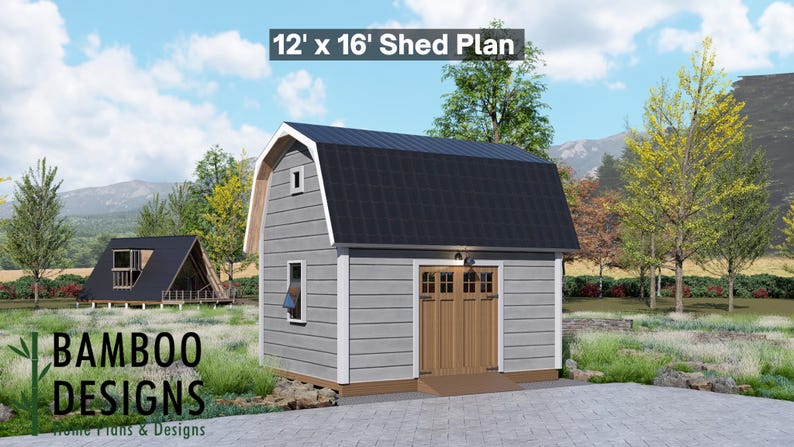

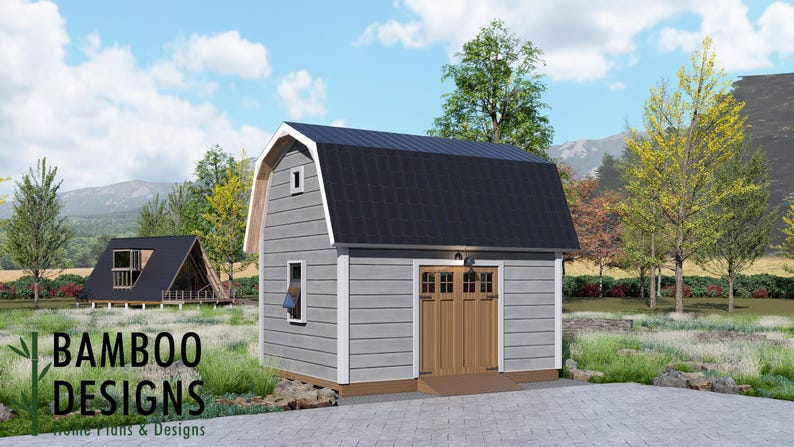

Raine 12x16 Gambrel Shed Plan — A Barn-Style Storage & Workspace Solution

Kickstart your next backyard upgrade with the Raine Gambrel Shed Plan — a 12x16 barn-style shed designed to deliver maximum interior volume, timeless character, and everyday versatility. Featuring a classic gambrel roof profile, clean horizontal siding, and wide barn-style double doors, Raine blends traditional charm with modern functionality.

Whether you’re building a spacious storage shed, backyard workshop, garden hub, or creative hobby space, the Raine 12x16 offers smart space planning, DIY-friendly construction, and a polished exterior that complements homes, landscapes, and rural or suburban settings alike.

✨ Key Features
✅ 12x16 Gambrel Roof Shed

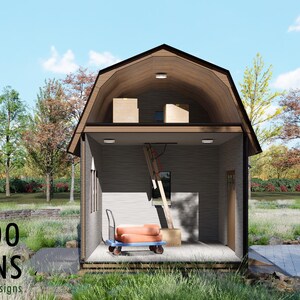

Classic barn-style architecture provides increased headroom and superior storage capacity compared to standard gable sheds.
✅ DIY-Friendly Construction
Straightforward framing, clean roof geometry, and clear build logic make this plan approachable for beginners and efficient for experienced builders.

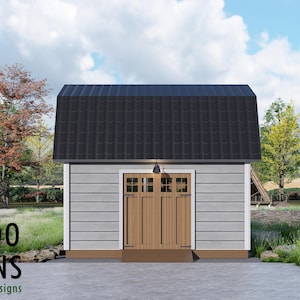

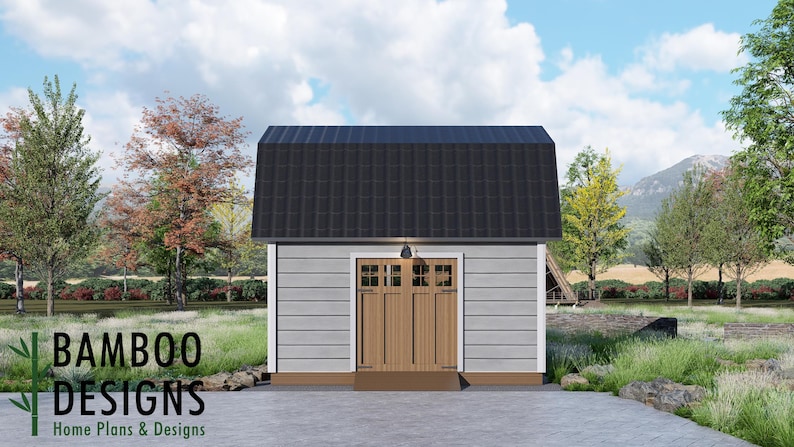

✅ Wide Double Door Access
Traditional barn-style double doors allow easy entry for lawn equipment, tools, bikes, workbenches, and bulky storage items.
✅ Timeless Barn Aesthetic
Horizontal lap siding, simple trim details, and the iconic gambrel roof create a rustic yet refined look that never goes out of style.
✅ Versatile Functionality
Perfect for storage, workshops, garden sheds, hobby studios, or multipurpose backyard buildings.

📐 Layout & Specs
Size: 12’ x 16’ (192 sq ft)
Roof Type: Gambrel (barn-style) roof for added interior height
Doors: Barn-style double doors

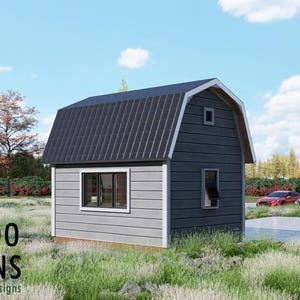

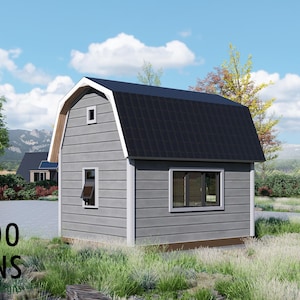

Windows: Side windows for natural light and ventilation
Siding: Horizontal wood lap siding (customizable to metal, composite, or board-and-batten)
Foundation: Compatible with skid, pier, or slab foundations

🛠️ Perfect For
Backyard storage sheds
Home workshops or tool sheds
Garden and lawn equipment storage
Hobby or maker spaces
Rustic backyard studios
Farm, suburban, or country properties

🌀 Note: This product includes plans for the shed structure only. Furniture, landscaping, and accessories are not included.

✅ What’s Included:
📐 Full Drawing Set (PDF + DWG)
🧰 Material List Included
🖨️ Printable on 24"x36" or letter-size sheets
🏗️ Designed to meet IBC/IRC 2024 Guidelines

🧠 Why Bamboo Designs?
We’re not just designers—we’re builders too. Our team has created 1,000+ permit-ready plans across the U.S. These designs are field-tested, code-conscious, and crafted to empower homeowners with modern, easy-to-build structures. Whether you’re in Texas, Arizona, or Washington, our designs help you build smarter.

👉 Note: This is not a stamped set. If you need floor plans or full permit-ready designs, contact us for a custom quote.
