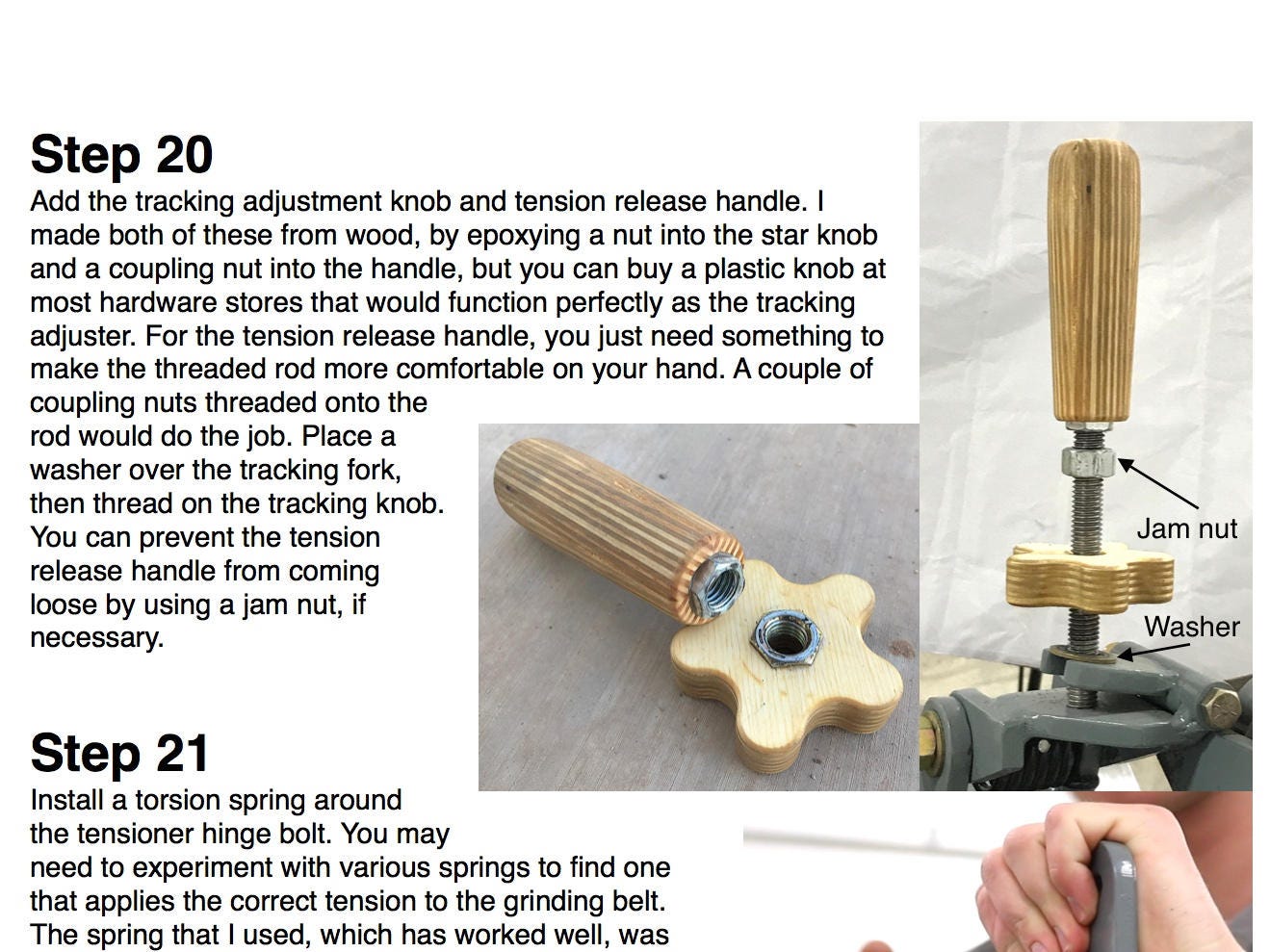

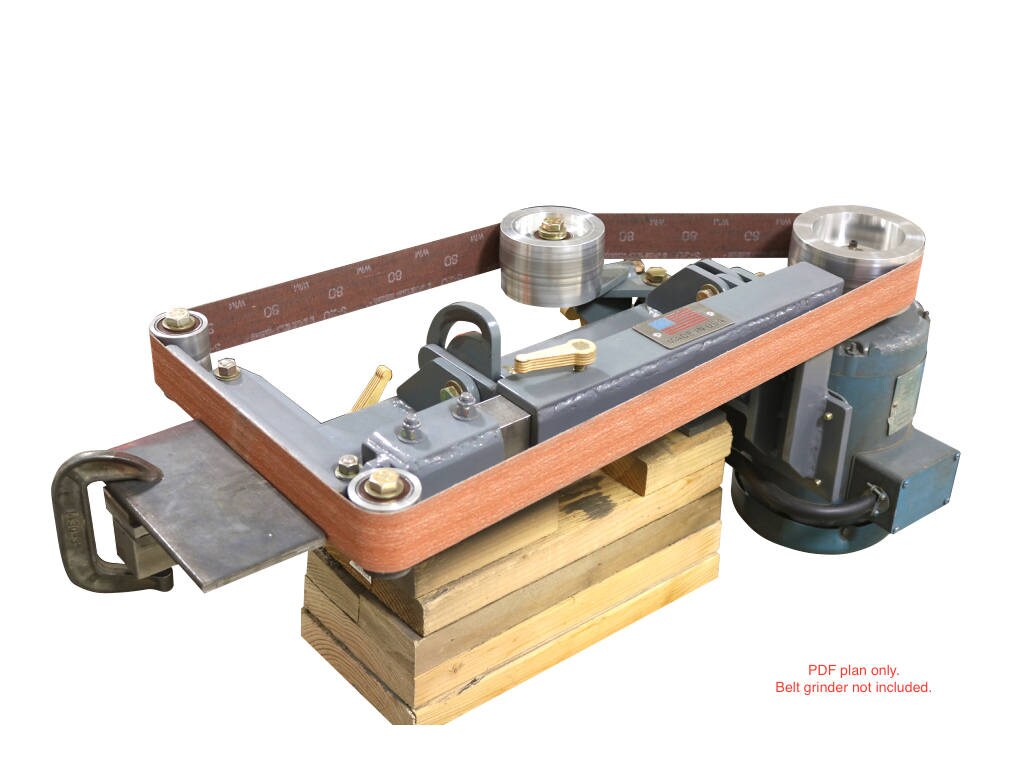

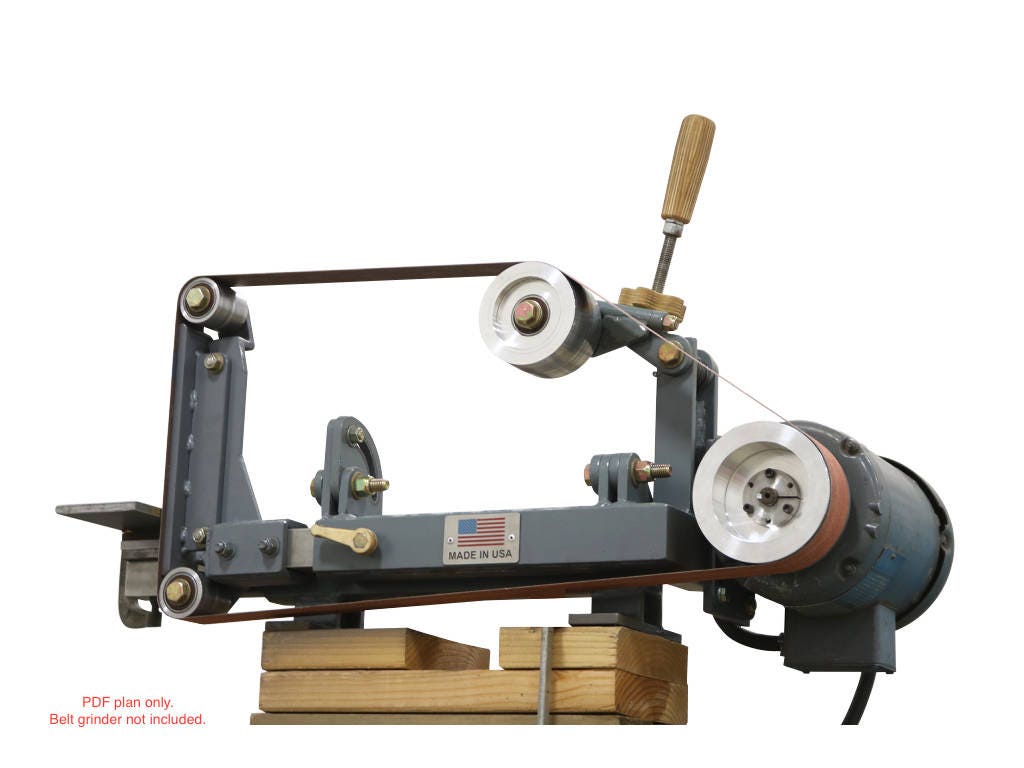

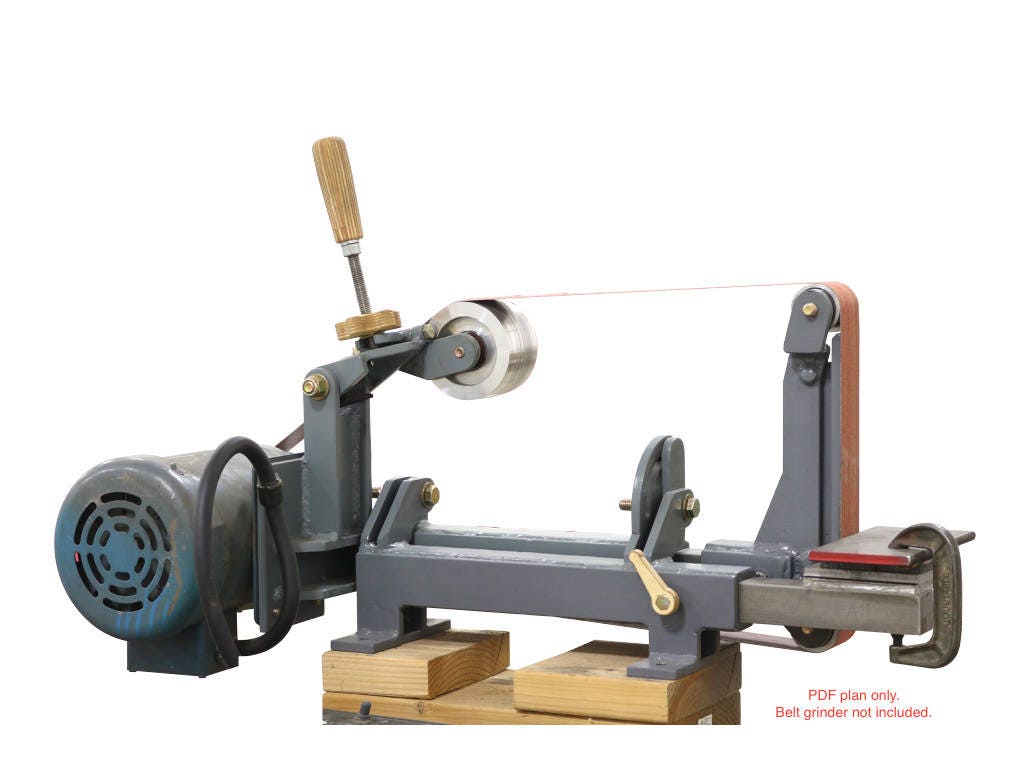

This is a PDF step-by-step instruction to help you build your own 2x72" tilting belt grinder like mine. This is one of the most versatile belt grinders ever made. Any attachment or table can be fitted in the two slots in the frame, and the grinder can be tilted 90° to serve as either a horizontal or vertical grinder. It was designed with ease of manufacture in mind, so you can build it with only a few basic tools such as a angle grinder, drill press, and welder. Please reference my videos on YouTube for more information on building this grinder: https://www.youtube.com/watch?v=a_RlL1O-bK4

This listing includes three files, which you can download immediately: PDF plans for the belt grinder, PDF plans for the platen attachment, and a 2 dimensional DXF drawing of all the parts. The DXF drawing is useful if you plan to get the parts CNC cut. Includes everything you need to get the machine up & running.

These plans are for personal use only. Do not resell them.

*PDF plan only. No physical items will be shipped*

2x72" belt grinder plans

$20.00

Etsy Purchase Guarantee

Get what you ordered or your money back.
Learn more


Overview

  • Handmade Supply
  • Craft type: Metalworking, Woodworking & carpentry
  • Instant Digital Download: 2 PDF, 1 other file included
  • Feedback: 14 reviews
  • Favorited by: 74 people
