AutoCAD - Dynamic Lighting Block

Name: AutoCAD - Dynamic Lighting Block
Brand: CajitadeHerramientas
SKU: 4525282995
Price: 3.36 USD
Availability: InStock

Price:$3.36

CajitadeHerramientas

You can only make an offer when buying a single item

Highlights

Digital download
Digital file type(s): 1 File

Translated by Google

See in original language

Translate to English

Sorry, we could not translate this listing to English.

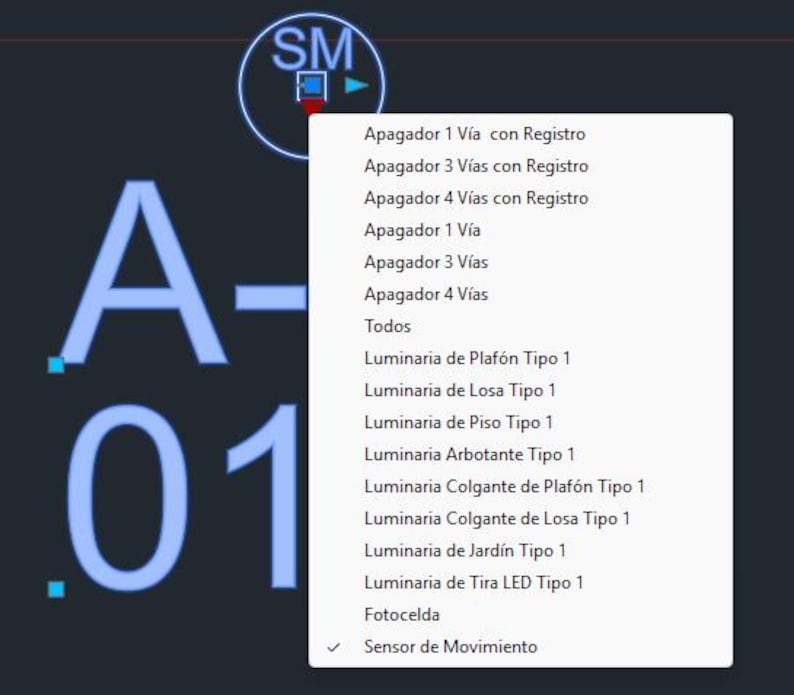

It is an annotative block of the AutoCAD program that includes the most commonly used scales in electrical plans (1:25, 1:50, 1:75, 1:100, 1:125, 1:150, 1:175, 1:200, 1:250, 1:300). It consists of symbols representing one type of light fixture, all types of switches, a photocell, a motion sensor, and an LED strip, with their respective necessary registers (4x4 register for ceiling, 4x2 on wall, 4x4 octagonal for slab, floor, or garden).

You can insert it into your plans and the letters will automatically adapt when you change the annotation scale so that the letters are always the same size and legible (2mm, recommended height).

However, the block also has properties to scale it in case you want larger symbols, rotate the switches, or enlarge the meters when using the LED strip light.

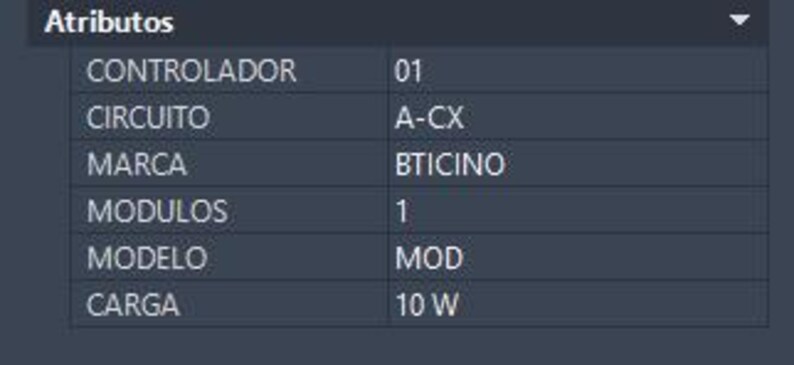

It also has properties to display the brand, model, and power of the equipment.
All this so that when they do a count with the "COUNT" command, it appears in their respective tables.
