Analogue Drum Synth diy soldering kit by Rakit. Boss PC-2 AMDEK PCK-100 clone

$56.49+

Loading
Please select an option

Other people want this. 9 people have this in their carts right now.

  • Handmade

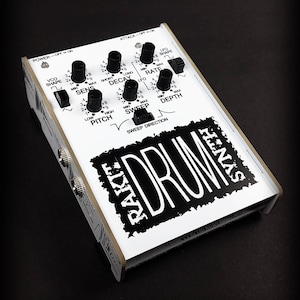

Available as a kit or a ready-made unit, the Rakit Drum Synth is a DIY drum synth kit based on the (now rare) Boss PC-2/AMDEK PCK-100 percussion synthesizer. Not only does this Drum Synth do sonic justice to the original but we have also put our own spin on it with extra modifications including:
* Attack on/off
* VCO & LFO wave shape selection
* Pitch CV input

The sounds are generated (using an external trigger such as the Rakit Baby8 Sequencer or by tapping a finger on the large touch pad) by a VCO (Voltage Controlled Oscillator) optionally modulated by a frequency sweep, LFO (Low Frequency Oscillator), Pitch CV (Control Voltage) or all three. There is a simple envelope generator with a fixed fast attack for punchy percussive envelopes and variable decay for super short to really long decays (5 seconds+). The sounds produced by the synth are perhaps not what you would normally expect to associate with drum sounds and can vary from big bass drums to tapping on glass to UFO space drum-wobbly things!

The Rakit Drum Synth is made entirely of interlocking PCBs and includes silkscreened artwork on all sides. Additionally unlike a lot of kits the only wires that have to be soldered are the ones going to the piezo disc.


Special care has been taken to make a kit that can be constructed with only 2 basic soldering tools: a soldering iron and a pair of flush cutters. The skill level required to build the kit is intermediate (Some prior experience is definitely recommended.) More information on the Drum Synth's functions plus clear instructions are available at Rakits.co.uk which include large step-by-step photos and tips, and a page of example settings to get you started. We recommend that this kit should take an evening (3-4 hours) to complete. We are unable to provide individual customer support with kit building so please see the detailed assembly guide to gauge difficulty before purchasing. Once started, kits cannot be refunded.

TOOLS REQUIRED
Soldering Iron & Solder
Flush Cutters
Pliers (optional but you might need them in a pinch [Ha!])

A battery snap to barrel jack cable is included as standard. We recommend using a good alkaline battery (not included.)


This kit is compatible with the Rakit Baby8 Sequencer kit and you can see both here in action: https://www.youtube.com/watch?v=m6eRdDSn84I
