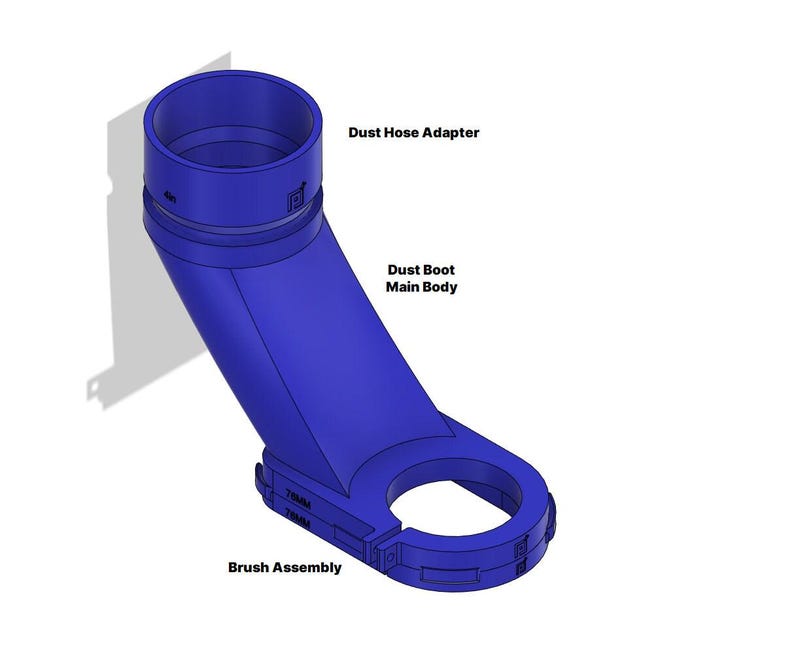

CNC Dust Boot v4 — 59mm to 108mm | Magnetic, Tool-Change Ready | P2P

Your CNC deserves a dust boot that actually stays put. The P2P Dust Boot v4 is engineered from the ground up for real-world CNC use — no mid-job dislodging, no fumbling for tool changes, no adapter drama. Just clean cuts and a clean shop.
Why makers choose the Pixels to Prototype v4:


🔩 Screw clamp mount — locks firmly to your spindle with zero wobble, even on aggressive passes

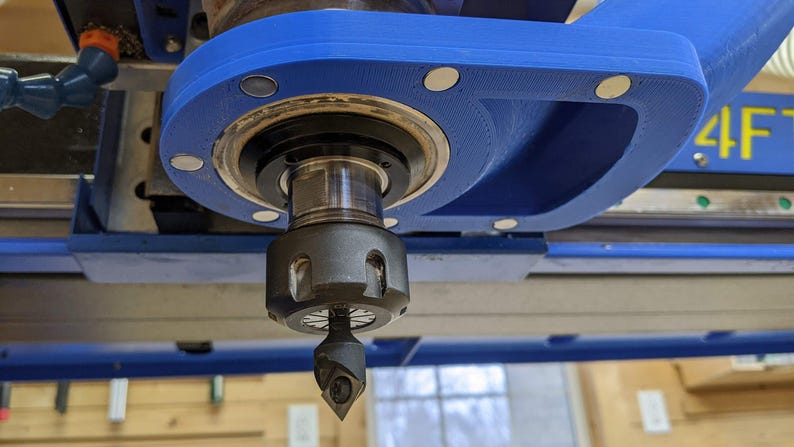

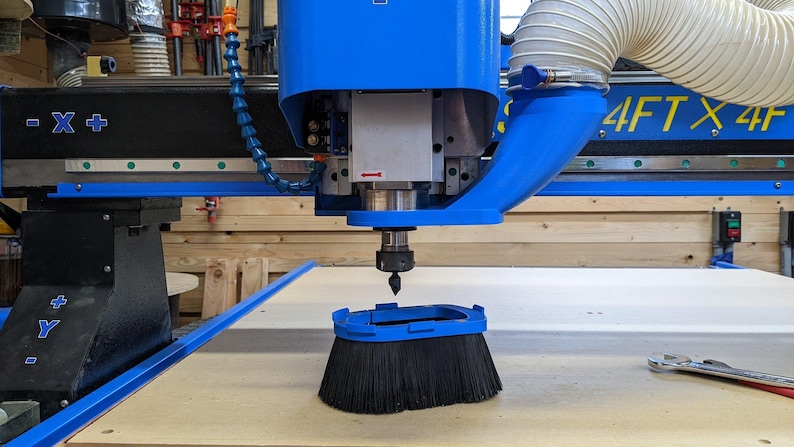

🧲 Magnetic brush + anti-dislodge tabs — stays put when things get hairy, snaps off in seconds when you need it

✂️ 3" USA-made nylon brush — trim it to any length with scissors; spare brushes in the store

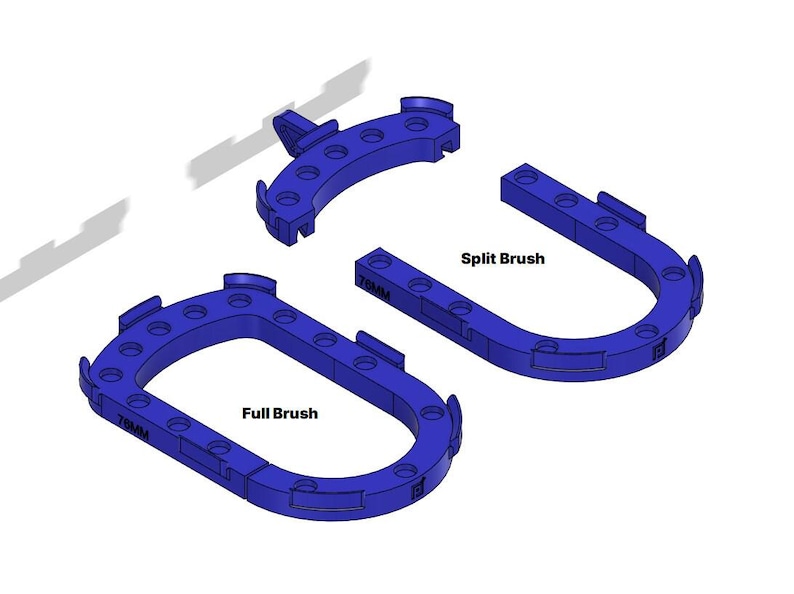

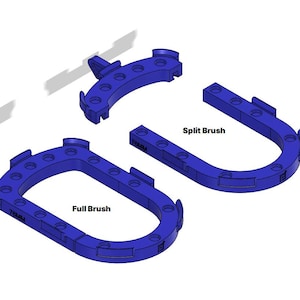

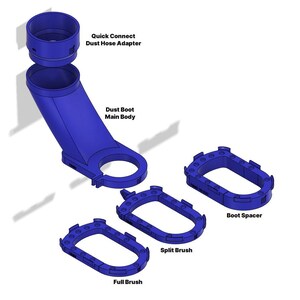

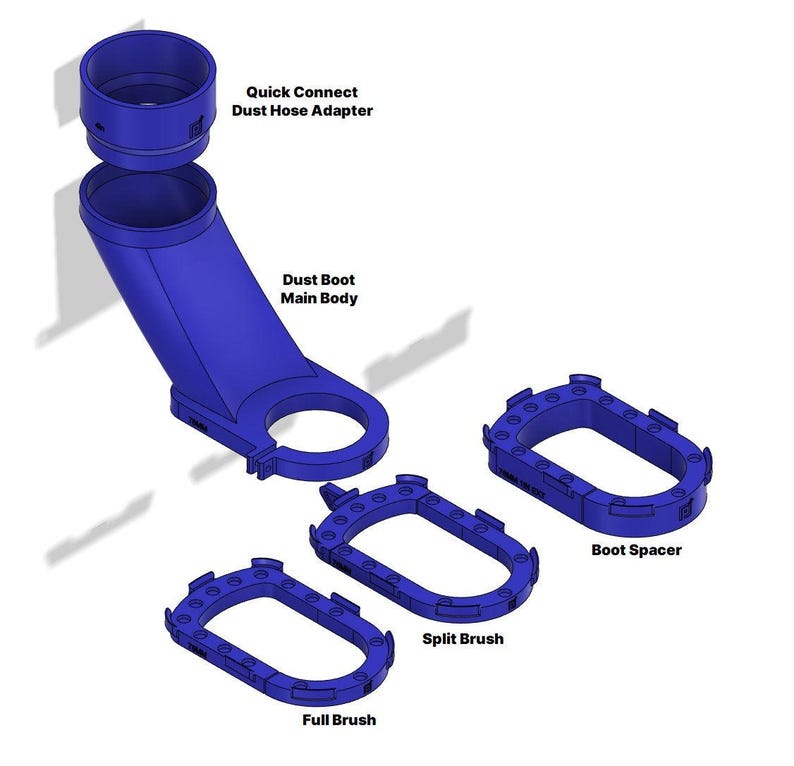

🔀 Split brush design — flip open for instant tool changes without removing the boot

🔌 Quick-connect hose adapter — disconnect your dust hose in seconds; default is 4" but adapters for all sizes available at no extra cost

🎨 Multiple colors — default black; contact us for custom requests

Compatible spindle sizes:59mm (XCarve Pro) · 62mm · 65mm (Makita / Carbide3D) · 70mm (DeWalt DWP611) · 75mm · 76mm (Phantom SCV44) · 80mm Standard · 80mm Sienci LongMill/AltMill · 80mm Extended · 82mm · 85mm · 88.9mm (Bosch 1617 / 1617EVS) · 90mm · 100mm · 108mm (Porter Cable 7518, Stepcraft Q404)
Works with: X-Carve, Onefinity, Shapeoko, Sienci LongMill & AltMill, OpenBuilds, Workbee, Lead CNC, Stepcraft (incl. Q404), EZ Router, DIY builds — and most CNCs in between. Have a weird machine? Reach out. We've made custom boots for dozens of setups.
Dust hose adapters included — just tell us your hose size at checkout. Available in 1.25" OD, 1.5" ID, 1.75" OD, 2.25" OD, 2.5" OD, 3" OD, and custom.
⚠️ The 3" brush may need trimming for shorter tooling. We recommend keeping a spare so you've always got a long and a short option ready.
Made by CNC makers, for CNC makers — in small batches, with real attention to detail.

📐 Which Size Do I Need?
The size refers to the outer diameter of your router or spindle body — not the collet, not the bit, not the collet nut. Measure around the cylindrical body of the motor itself. Here's a quick reference for the most common machines:



Size
Router / Spindle
Common Machines



59mm
XCarve Pro router
X-Carve Pro


62mm
Various compact spindles
DIY builds, some imported spindles


65mm
Makita RT0701 / RT0700, Carbide3D router
Shapeoko, Nomad, Sienci LongMill (stock router), many DIY CNCs


70mm
DeWalt DWP611
X-Carve (original), OpenBuilds, Workbee


75mm
Various mid-size spindles
DIY builds, Stepcraft, EZ Router


76mm
Phantom SCV44 (older models)
Phantom CNC (pre-S series)


80mm Standard
Most 800W–2.2kW water/air-cooled spindles
Onefinity (standard spindle), Lead CNC, many DIY builds


80mm Sienci LongMill/AltMill
80mm spindle on a Sienci Labs machine
Sienci LongMill MK2 / MK2.5 with 80mm spindle upgrade, AltMill / AltMill MK2


80mm Extended
80mm spindle with a cooling shroud or bulky mount
Larger-format and production CNCs — hose port sits further out so the hose clears the shroud


82mm
Some 2.2kW spindles, select imports
DIY builds — measure to confirm


85mm
Phantom SCV44 (S series & newer)
Phantom CNC S series


88.9mm
Bosch 1617 / 1617EVS / 1618 series
OpenBuilds, custom router tables, DIY CNCs


90mm
Phantom S series (select configs)
Phantom CNC S series — verify your model


100mm
Large format spindles (3kW+)
Heavy-duty DIY and industrial builds


108mm
Porter Cable 7518 (4.25" motor body)
Stepcraft Q404 with Porter Cable 7518, router tables, heavy-duty DIY CNC builds



How to measure: Wrap a soft tape measure or a piece of string around the widest part of your spindle body (not the mount, not the collet nut). That circumference divided by π (3.14159) gives you the diameter. Round to the nearest size above.
Three 80mm options — which one? All three clamp the same 80mm spindle body; the difference is everything around it. Pick 80mm Standard for a bare spindle. Pick 80mm Sienci LongMill/AltMill if you're on a Sienci machine with an 80mm spindle. Pick 80mm Extended if your spindle wears a cooling shroud or your mount crowds the hose port — the extended version pushes the hose connection further out so nothing collides.
Still not sure? Drop your router or spindle model in the contact form or send us a message — we'll point you to the right size in minutes. We'd rather take 30 seconds to help you get it right than have you waiting on a return.

🛒 Complete Your Setup
Most customers grab one or two of these alongside their v4 — they're the consumables and accessories that keep your boot performing at its best.



Product
Why You Need It
Price



Replacement Brush — Full & Split
Brushes wear down over time. Keep a spare so you're never stuck mid-project. Available in full and split styles.
$24.99


Dust Boot Brush by the Foot
USA-made nylon bristle in standard (0.5mm) or fine (0.25mm) filament. Cut to any length you need — great for custom heights or replacing a section.
from $10.00


Brush Spacers — ½" & 1"
Running longer tooling or cutting tall stock? Spacers drop the brush skirt lower for better seal and suction on deeper cuts.
$22.99


Hose Adapters — 1.25" to 4"
Quick-connect compatible adapters for every common shop vac and dust collector hose size. If your hose size isn't covered in checkout, grab one here.
from $7.00


Dust Hose Support Kit
Stop fighting a flopping 4" hose. This overhead EMT mount keeps your hose off the work area and out of the way on every pass.
$46.50
